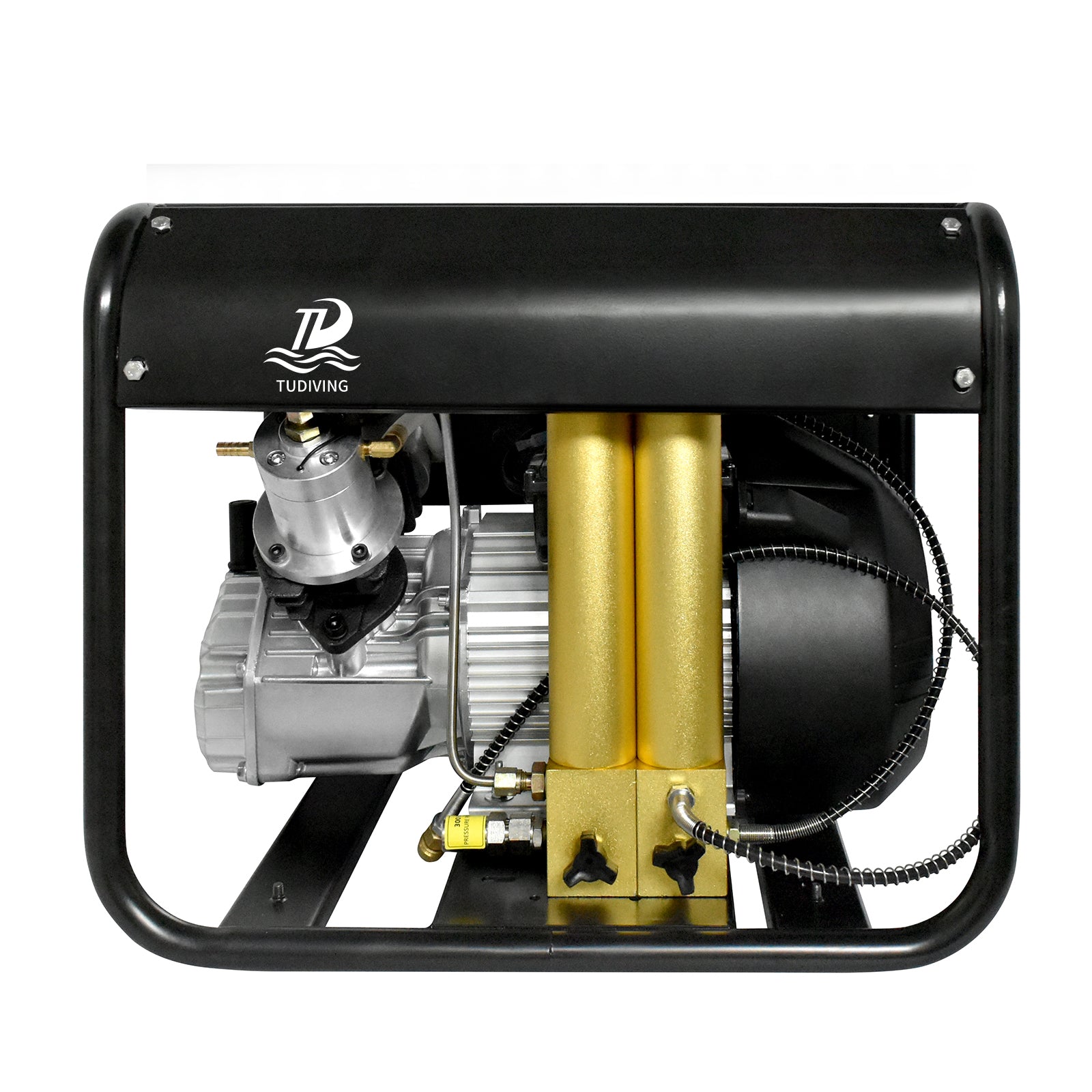

TUDIVING-4500Psi CPC Air Compressor,Scuba Tank Compressor Built-in Two Stage Water-Oil Filter,Compressor for Scuba Diving/Firefighting/Paintball
TUDIVING-4500Psi CPC Air Compressor,Scuba Tank Compressor Built-in Two Stage Water-Oil Filter,Compressor for Scuba Diving/Firefighting/Paintball
Couldn't load pickup availability
- 【Product Specifications】: TUDIVING This PCP air compressor is equipped with 110v power supply and can be used with household power supply. Working pressure: 30MPA/300bar/4500psi, flow rate: 40L/min, power: 2.2kw, frequency: 60Hz, very suitable for large-capacity bottle filling, filling a 0.5 liter water tank from 0-300 bar takes about 3 minutes, from 0 bar to It takes approximately 45 minutes to fill a 6.8 liter water tank at 300 bar.
- 【Oil/Water Separator】: The scuba tank compressor has a built-in two-stage filtration system, which can make the air cleaner. Attached blue oil and water filter, very suitable for diving use, using safety valve, it will automatically purify after overpressure. The inflation nozzle is an 8mm quick connector, which can be quickly connected and disconnected.
- 【Instrument Design】: This PCP air compressor has an adjustable pressure gauge, which is an automatic air compressor that will automatically stop filling when the pressure reaches the pressure you set. The maximum pressure can reach 4500Psi.
- 【Cooling System】: Battery-powered digital thermometer monitors independent water cooling system. You need to prepare cooling water in an external bucket. Do not start the machine without preparing cooling water. Before using the compressor, replace the oil suction device and fill it with oil.
- 【Wide Application】: scuba compressor very suitable for diving, firefighting, paintball, leak detection, pressure testing, automobiles, air tightness testing, pressure testing, etc. We come with an operating manual and if you have any questions, our service team is ready to answer any questions you may have.
-
Why choose us?
- TUDIVING means time for underwater diving to explore the wonders beneath the waves.
- TD logo means to diving like waves to where what we want. It also like one sailboat to protect us go faster.
- TUDIVING is committed to providing each customer the highest quality outdoor and sports product.Let everyone experience the joy of diving!

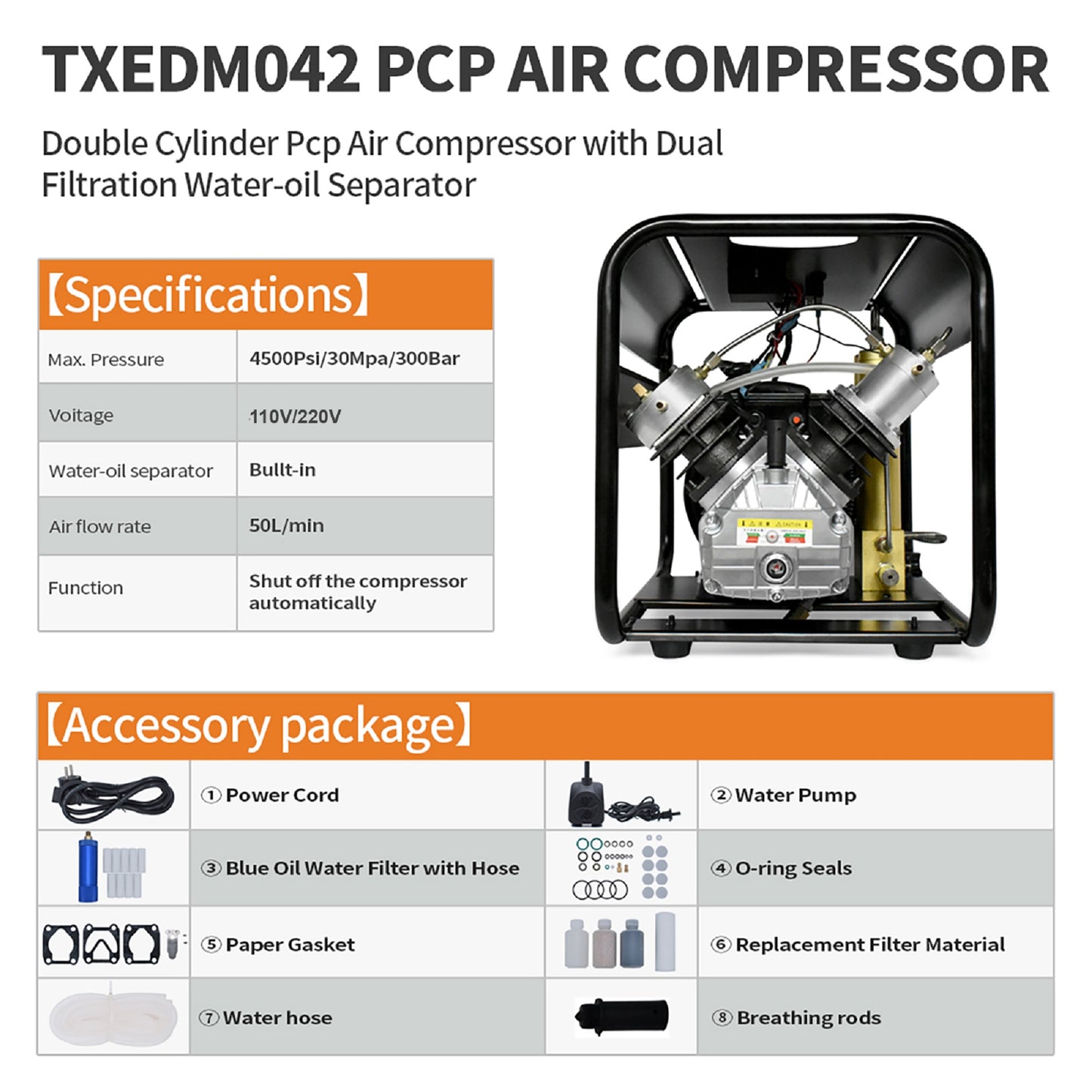

Specification
- Model Number: TXEDM042
- Motor Power: 2.2KW
- Function: Shut off the compressor automatically
- Working pressure: 4500Psi/30Mpa/300Bar

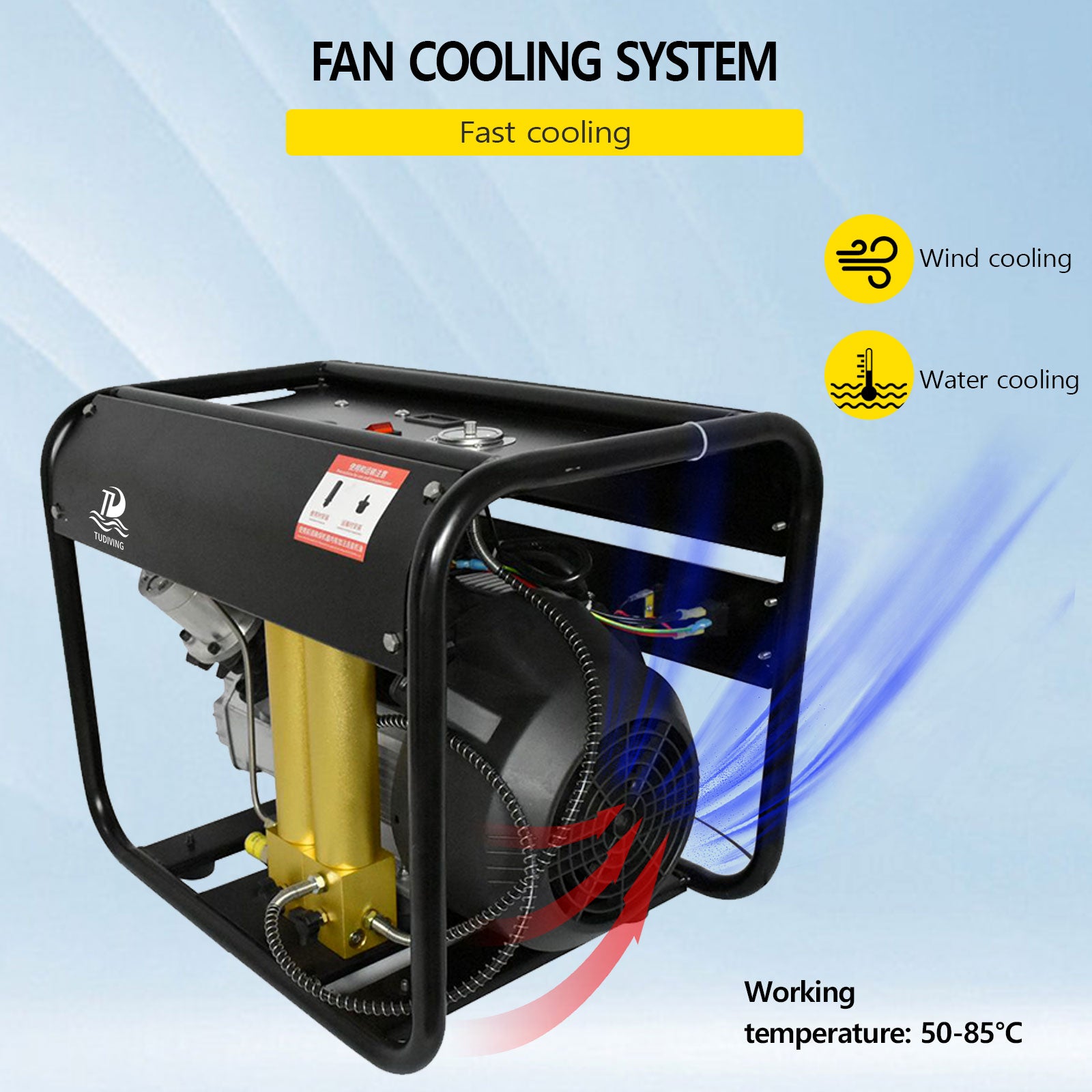

- Cooling systen: Water and fan cooling
- Air flow rate: 40L/min
- Inflating speed: 2800R/min
- Built-in double filter advanced safety valve
- Oil standard: IS0 VG 46 & AW 46（For filling diving bottles, it is recommended to use Food grade oil.）
- Wide application: Perfect for diving, fire fighting, hunting,paintball, shooting,leakage detecting, pressure-tight test, automobiles, air impermeability test, pressure proof test, etc.

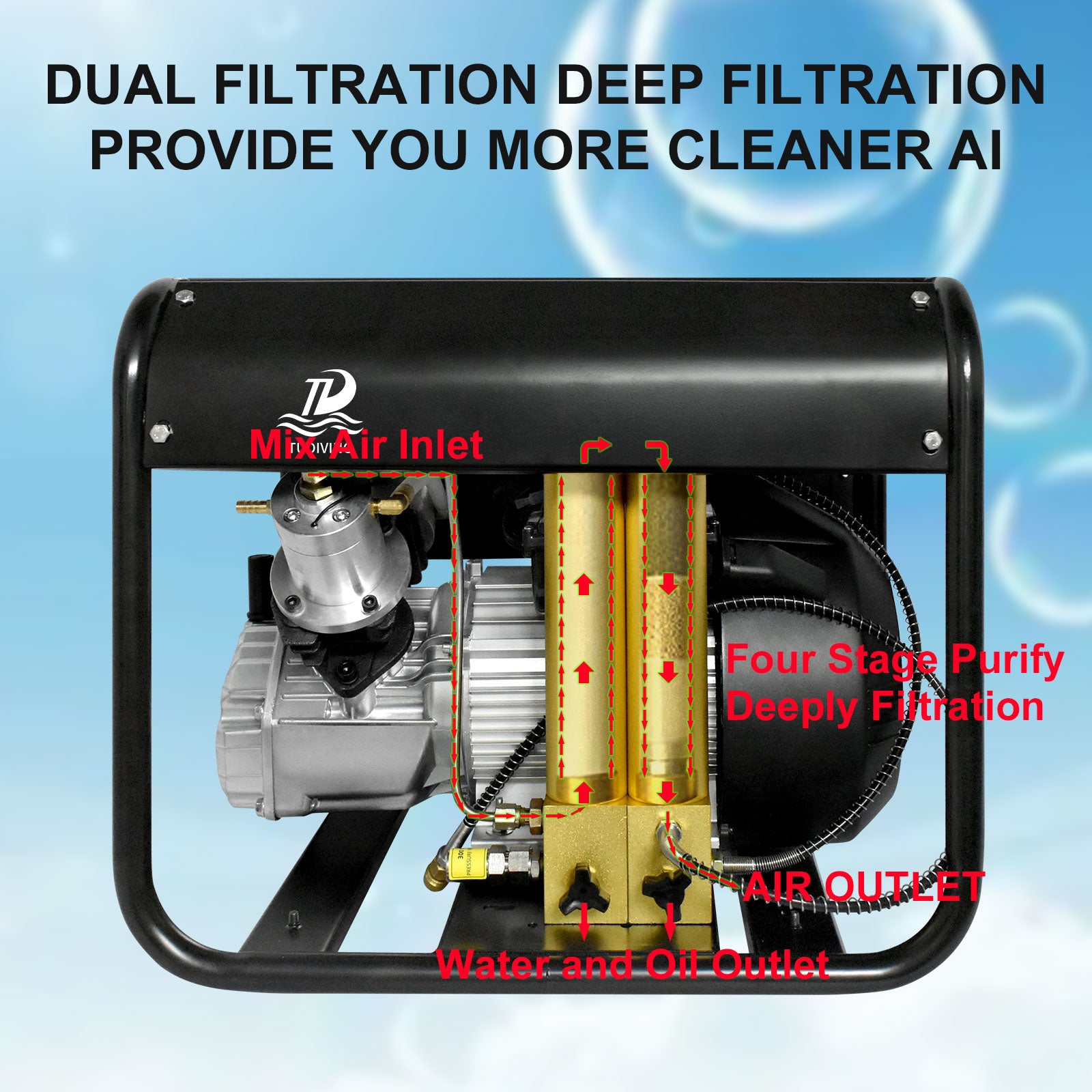

Dual Filtration Deep Filtration
The compressor is built-in two stage filtration system ,Make the air quality cleaner and purer.No need to purchase additional filters

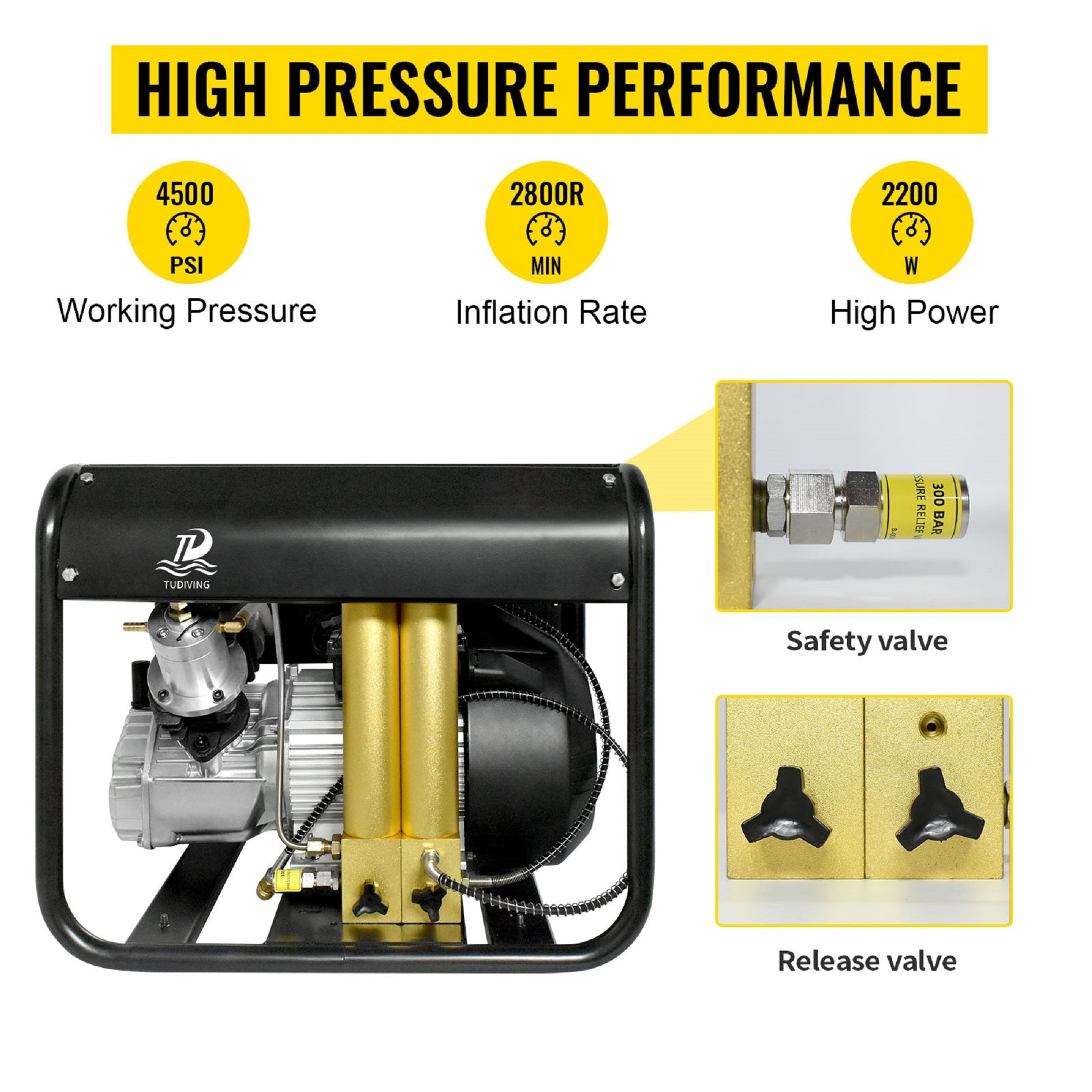

High Pressure Performance
This compressor features a 2200W high-power copper motor and excellent inflation performance. The maximum working pressure is 4500PSI, the inflating rate is 2800R/min, and the flow rate is 40L/min.Use the safety valve,it will auto purge after over-pressure.
Wide Application
This PCP/scuba compressor has an oil-water separator filtration function, and the machine discharges clean air. It is very suitable for filling diving cylinders. It is also suitable for PCP rifles, paintball tanks, air pistols, paintball air rifles, firefighting, Leak detection, pressure test, air tightness test, etc.
After receiving the compressor, please note the following:
1. Please check whether the outer packaging and the machine are damaged;
2. The compressor temperature should not exceed 85℃ or the running time does not exceed 45 minutes;
3. Do remember put on the breathing rods the replace the oil cap , then add oil to the leval of the red dot;
4. The compressor will install one filter along with the filling hose in order to make good air quality.
5. When connecting the filter and hose, please make sure that the blue filter and hose have been assembled and there is no leakage;
6. Due to transportation restrictions, the compressor does not come with silicone oil, so buyers need to prepare silicone oil by themselves
7.The filling pressure does not exceed 300Bar/4500PSI/30MPA
